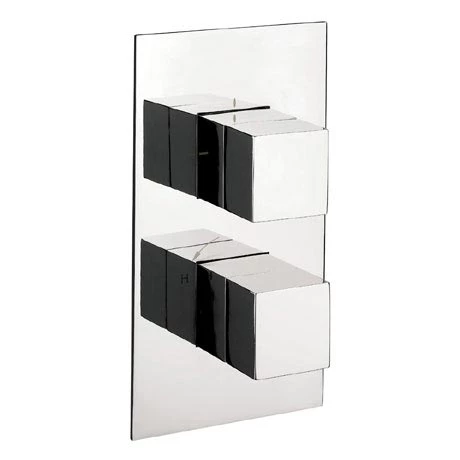

Crosswater – Water Square Thermostatic Shower Valve with 3 Way Diverter – WS2500RC

This innovative multi-outlet valve is probably the first concealed model to feature an integrated double check valve (DCV), which is designed to protect water supplies from contamination and back fill. Bath overflow fillers require a double check valve so this clever advancement in valve technology gives the very best in showering and modern bath filling, which also reduces installation costs and time.

This pioneering product operates 3 outlets from a single diverter instead of two. It can operate a bath filler with an overhead shower and handset, or a threeshower outlet such as a wall handset and a dual functioning overhead shower, for an invigorating experience.

Features

• Brand – Crosswater
• Manufactured from highly durable brass
• Three outlet valve with single diverter to switch between three different shower or bath functions
• Suitable for high pressure systems of 1.0 bar and above
• Recessed for streamlined appearance
• Ceramic disc control for smooth action and no drips
• 100% solid brass construction and trim set
• Chrome brass face plates – that fit over uneven/bumpy tiled surfaces
• Fully serviceable from the front
• Inlet supply – Threaded 3/4″ female connectors
• WRAS and TMV2 approved

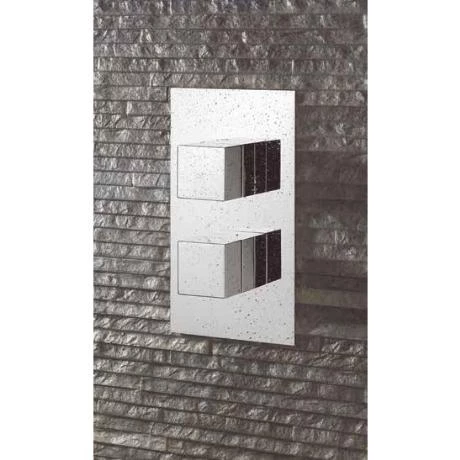

Please note this valve must be installed in portrait as shown.

15 year manufacturers guarantee

Flow Rates

0.2 Bar – 6 l/m
0.5 Bar – 11 l/m
1.0 Bar – 17 l/m
2.0 Bar – 22 l/m
3.0 Bar – 25 l/m
