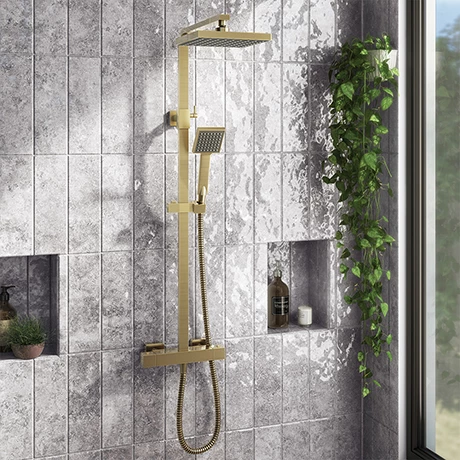

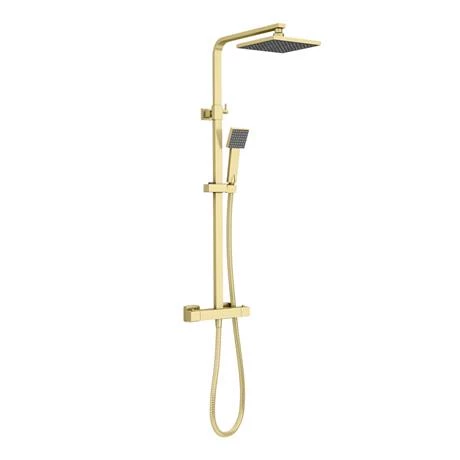

Arezzo Square Thermostatic Shower – Brushed Brass

The Arezzo Brushed Brass complete thermostatic shower set offers both the flexibility of a lightweight handset and the extravagance of a fixed overhead drencher. This premium brushed brass thermostatic shower comes complete with the newest ceramic disc technology and is easy to install. Featuring brushed brass shower fixtures in a contemporary square design, it will make a sophisticated centrepiece in your wet room or bathroom. Both shower heads have nozzles than can be rubbed clean to make limescale removal quick and easy.

Product Details

• Rigid riser height: 800-1280mm
• Length of shower head arm: 353mm

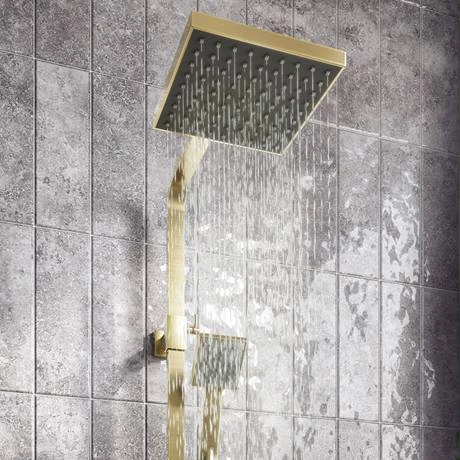

• Overhead shower head size: 200 x 200mm
• Shape: Square
• Style: Modern

• Colour/Finish: Brushed Brass Plated
• Thermostatic shower, consisting of a square thermostatic bar valve and rigid riser kit with twin square shower heads
• Easy to divert water from handset to overhead drencher with in-built diverter
• High quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Thermostatic shower system that cuts out the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower
• One fixed head and one single function shower handset.
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.
• Square thermostatic mixing valve of brass construction with built-in diverter and brushed brass finish.
• Rigid riser with brushed brass finish
• Easy installation
• 150mm between pipe inlet centres
• Inlet Pipe Feeds: 15mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Pipe work feed is Hot Left and Cold Right
• Flow Rates:
• 0.5 Bar – 6L/M
• 1.0 Bar – 8.5L/M
• 2.0 Bar – 13L/M
• 3.0 Bar – 15L/M
• 4.0 Bar – 17.5L/M
• 5.0 Bar – 19.5L/M

Please note: Certain parts are plastic, not metal

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
